Performance
Nex Gen
triple tube
The hull under every Pro Troll, Pro Family Fish, and Pro Fish N’ Cruise. Built for stability on open water and control in tight spots.
The chassis
Strength you can’t
see from the dock
Fully welded baffles stiffen each outside tube. Lateral supports reinforce the nose cones. Hat channels run the full width of the deck, and lifting strakes and M-bracket risers run the full length.
Every tube is 0.125-inch aluminum. The drawing shows an 8524 chassis.
- 0.125″Material thickness on all three tubes
- 6 to 7Fully welded internal baffles in each outside tube
- 0.188″Hat channels in the stern, with full-width hat channels throughout
- 0.08″Full aluminum under-skin
- 2 per tubeLifting strakes on all tubes
- 2 per tubeFull-length M-style risers
- Full lengthCenter pontoon
- Full lengthRigging chamber inside the riser
- 45 galBuilt-in fuel tank
- Port tubeKicker motor bracket, standard
- WeldedInternal lateral nose cone support
- IncludedHydraulic steering and ski tow bar
Up close
Where the strength is

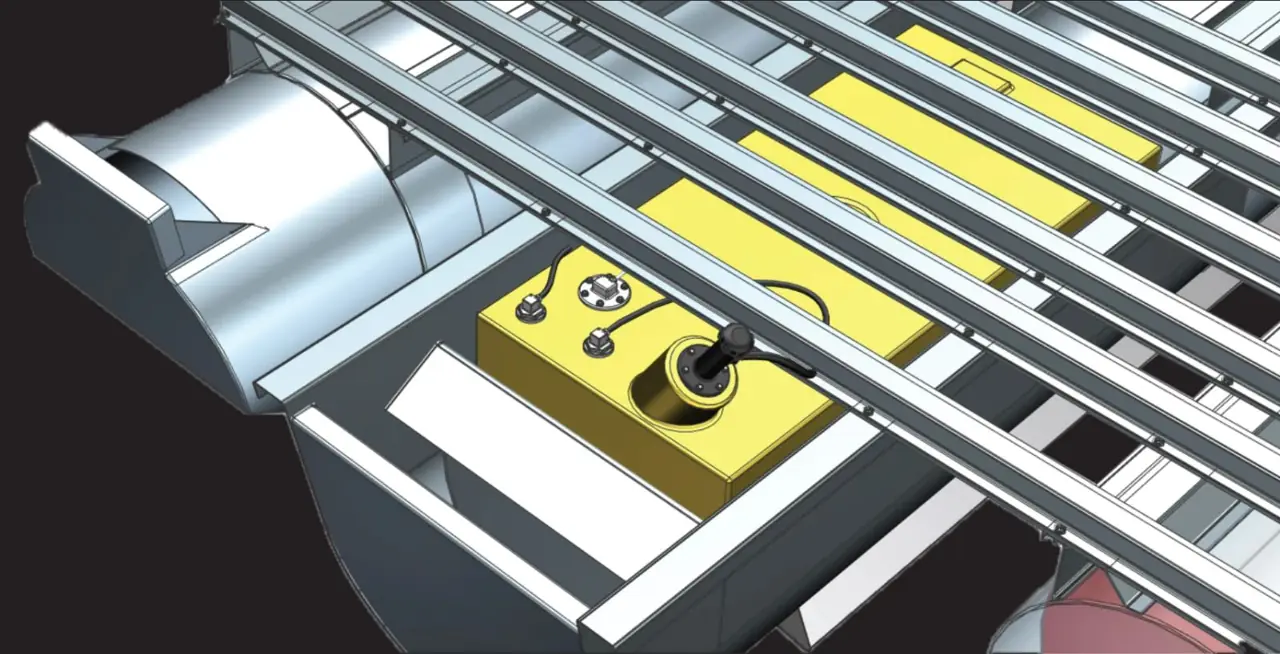

Kicker motor bracket and integrated fuel tank
A kicker bracket is welded to the port tube, and the 45-gallon fuel tank sits inside the chassis.

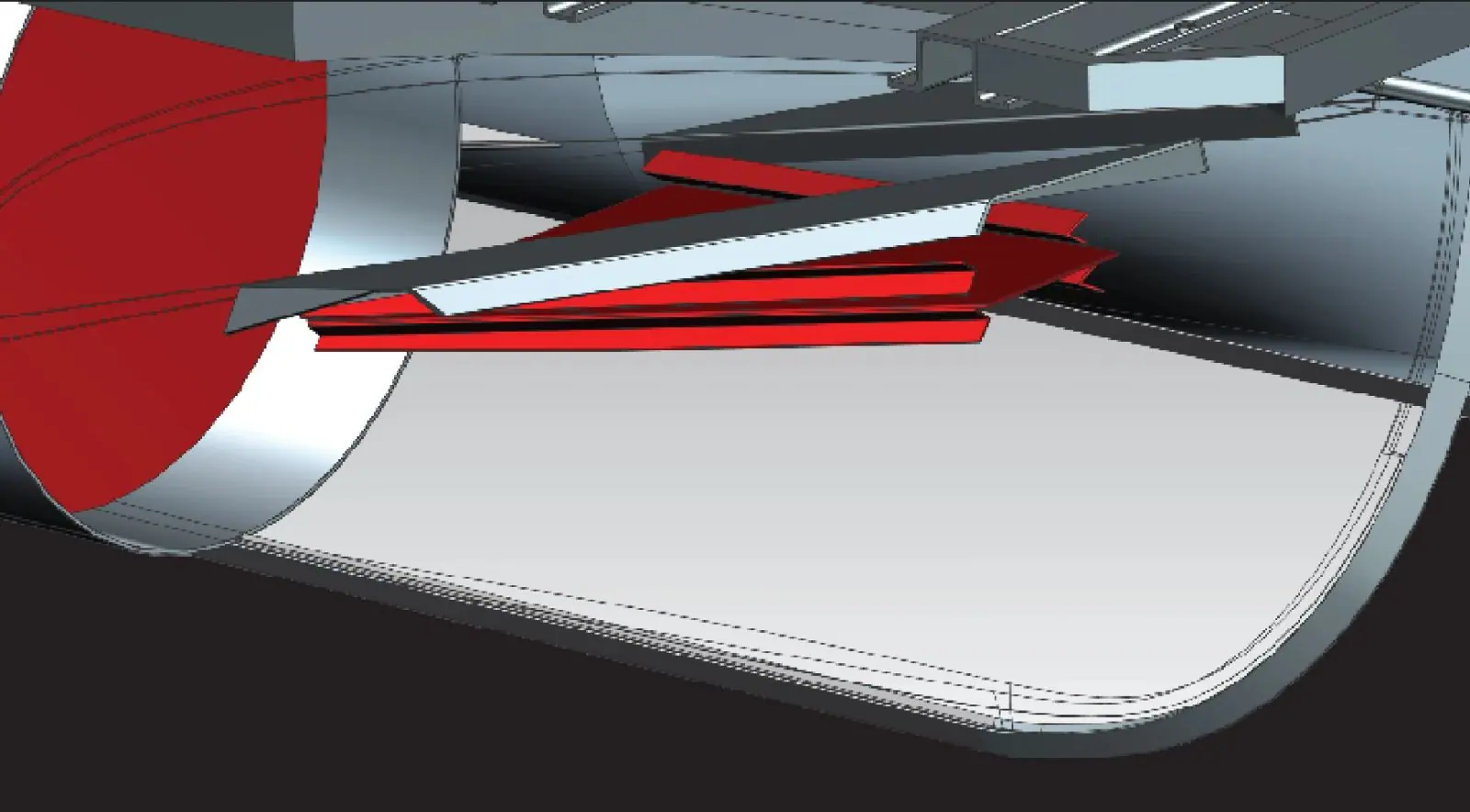

Aluminum lateral nose cone reinforcement
Welded lateral supports inside each nose cone, where the hull meets the waves first.

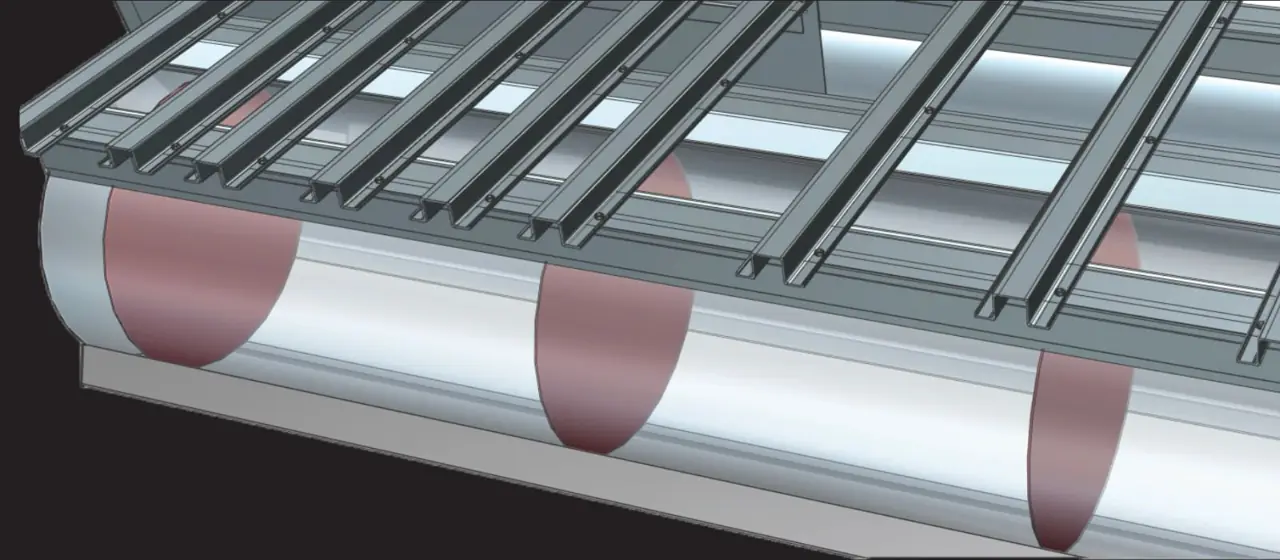

Full-width hat channels
Hat channels span the full width of the deck, with heavier 0.188-inch channels in the stern.

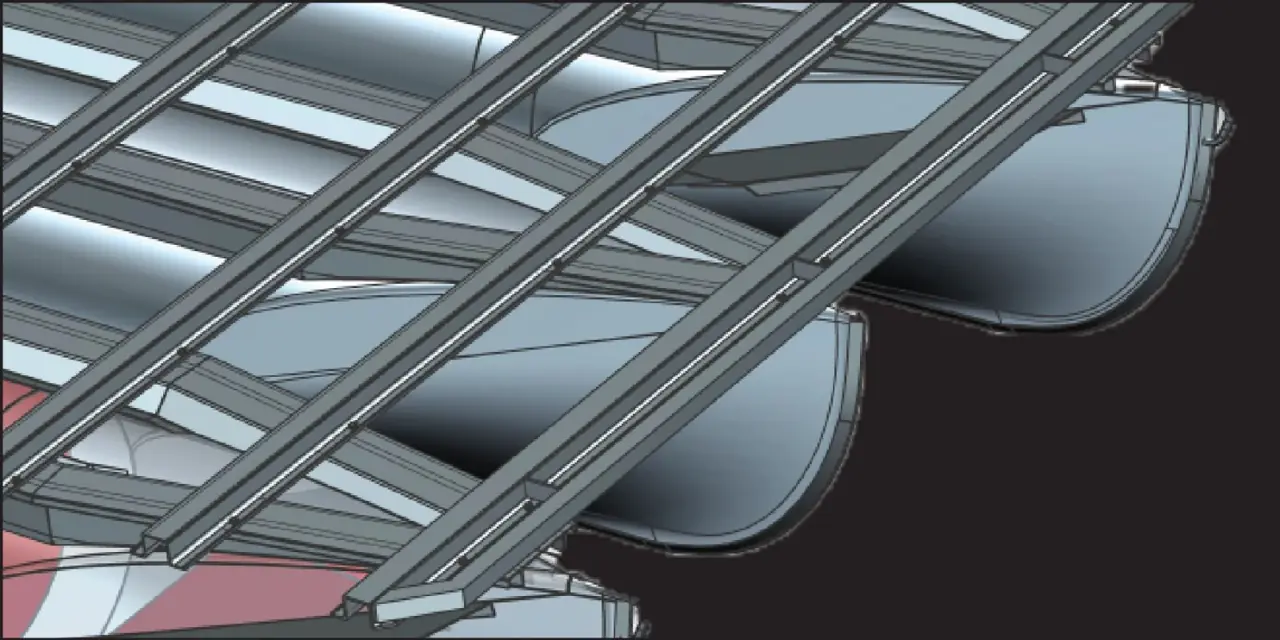

Additional reinforcement at the bow
Extra structure under the front corners of the deck for big water and wind.
Availability
Which boats get it
The Triple Tube Package is standard on all three Pro series and optional on Panfish. It also brings hydraulic steering, a ski tow bar, and a 45-gallon built-in fuel tank.
Ready to see one
in person?
Tell us which model you’re looking at and where you fish. We’ll point you to a dealer and answer your questions.
